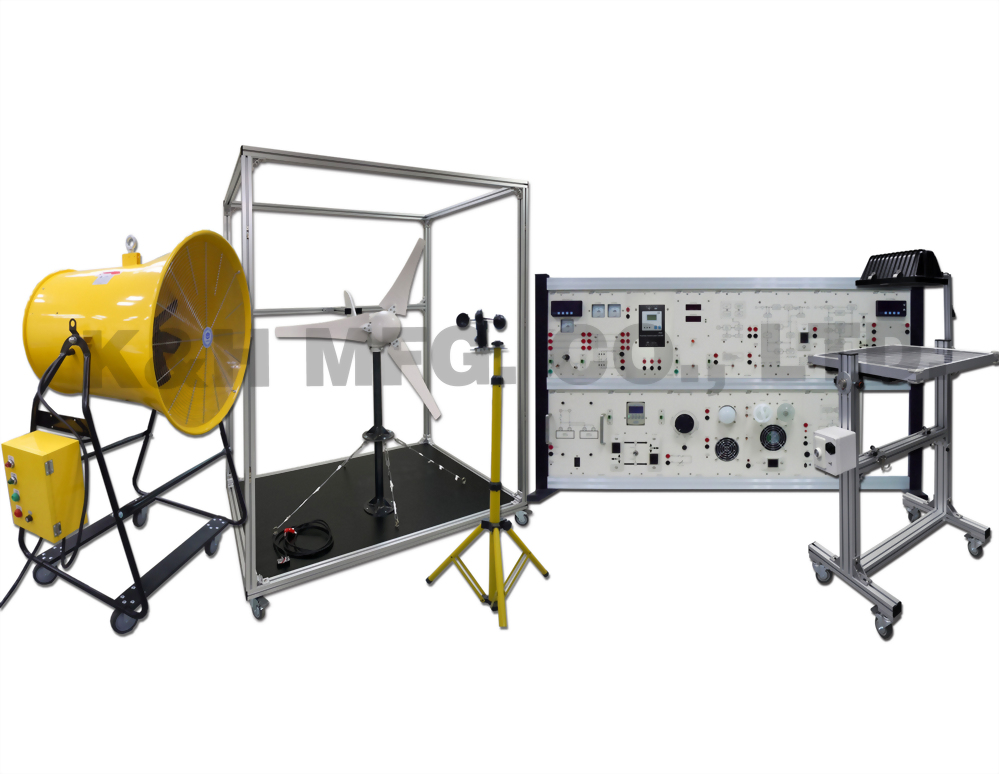

GES-500 Sistema Híbrido Eólico y Solar
Solar Power Generation System Manual
1. Conversion test
of solar photovoltaic energy
2. Solar cell
characteristic curve test
3. The influence of
temperature on solar cell
4. Solar cells
affected by different light angles curves
5. The efficiency
and maximum power of solar cell
6. Solar cells
generation-off-grid
7. Solar cells
generation-streetlight
8. Solar cells generation-grid-tie
Wind Power System Manual
1.
Wind speed experiment of a wind turbine
2. Open circuit and loading experiment of wind turbine
3. Wind energy utilization factor of wind turbine
4. Power curve experiment of wind turbine
5. Wind power generation-off-grid
6. Wind power generation-grid-tie
Scenery Complementary Laboratory Manual
1.
The efficiency of DC-AC inverter
2. The efficiency and Islanding effect of grid-tie inverter
3. Wind and solar hybrid system-off-grid
4. Wind and solar hybrid system-streetlight
5. Wind and solar hybrid system-grid-tied
2. Using the digital meter, the user can observe the current operation status of the system.
3. All the input and output terminals are adopting the safety plugs. Users can implement the experiments with the connecting wires easily and safely.
4. Equipped with the Polarity reverse protection to avoid the modules being damaged due to the wrong input of inverse power.
5. Adjustable light source for the sunlight intensity
6. Adjustable solar panel, simulating the situation of the sunlight irradiation from different angles.
