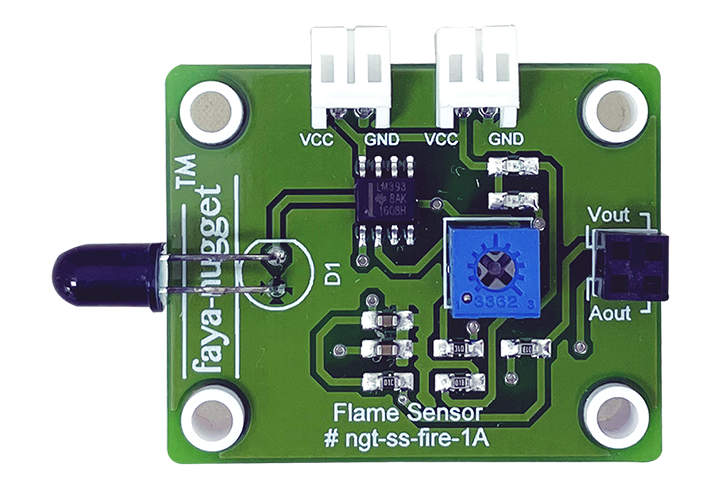

Flame sensor
modelo :
KPF-S6101-FA00
Main Parts：
Power Jack x 2
Flame Sensor x 1
Resistor Trimmer x 1
LED x 2
2x2-pin Stackable Header x 1
Range：760nm ~ 1100nm (Light Wavelength)
Trimmer Resistance：10KΩ
Output：Vout, TTL voltage; Aout, analog voltage
Brick Unit：5 x 4
Power Jack x 2
Flame Sensor x 1
Resistor Trimmer x 1
LED x 2
2x2-pin Stackable Header x 1
Range：760nm ~ 1100nm (Light Wavelength)
Trimmer Resistance：10KΩ
Output：Vout, TTL voltage; Aout, analog voltage
Brick Unit：5 x 4
Note：
(1) Use resistor trimmer to adjust sensitivity
(2) Green LED on when power up
(3) Red LED on when flame detected
